HZXVOGEN HVC55 Professional 55A Plasma Cutter

Product Overview

The HZXVOGEN HVC55 is an upgraded, high-performance digital inverter plasma cutter engineered for superior cutting capacity and precision. Compared to standard models, the HVC55 features an increased output and professional-grade cooling controls. Powered by advanced IGBT technology, it delivers a stable arc for high-efficiency cutting on steel, stainless steel, and copper.

Technical Performance and Capability

• Enhanced Cutting Power: Delivers a 55A maximum output, capable of a high-quality clean cut on 8mm steel at 40 PSI and a maximum severance thickness of 15mm at 60 PSI.

• Advanced IGBT Inverter: High-frequency arc ignition ensures rapid starting and high energy efficiency for consistent performance.

• Automatic Dual Voltage: Intelligently adapts to 110V and 220V (± 15%) power inputs at 50/60Hz frequency.

• Streamlined Air Management: Features a factory-installed internal air pressure regulator and a moisture-separating filter assembly for a cleaner setup.

• External Air Requirement: This unit is designed to work with an external air compressor, connected via the rear air intake port.

Professional Control and Monitoring

The HVC55 front panel is optimized for real-time adjustments and thermal management:

• Integrated Pressure Gauge: An embedded analog gauge provides immediate feedback on input air pressure levels.

• 5s/10s Post-Flow Toggle: A professional-grade cooling switch allows users to adjust post-gas flow time. This cools the torch and significantly extends the lifespan of electrodes and nozzles.

• Digital Amperage Display: Offers an accurate, easy-to-read display for precise amperage tuning based on material thickness.

Safety and Industrial Reliability

• Multi-Point Protection: Integrated safety sensors provide automatic shutdown for thermal overload and overcurrent scenarios.

• IP21 Protection Rating: Built to international standards for protection against solid foreign objects and vertical water spray.

• High-Velocity Cooling: Equipped with an internal high-speed fan and optimized airflow channels to maintain duty cycle performance.

• Anti-Shock Design: The chassis is finished with a specialized coating to prevent electrostatic discharge and enhance operator safety.

Physical Specifications

• Net Weight: 4.7 kg (approx. 10.36 lbs).

• Dimensions: 13.58" (L) x 4.92" (W) x 7.87" (H).

Package Contents (HVC55 Specific Kit)

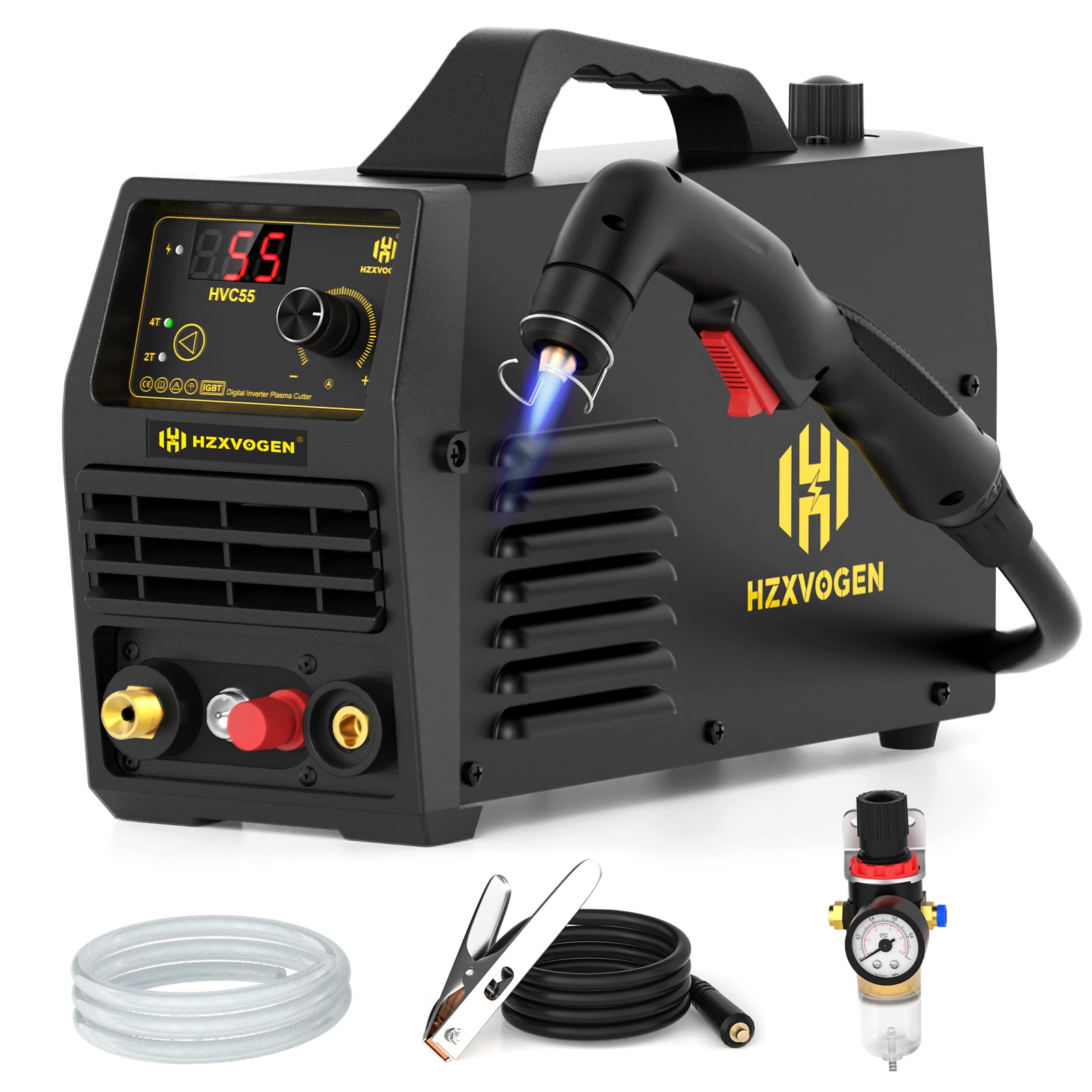

The HZXVOGEN HVC55 arrives as a ready-to-connect kit:

• 1 x HVC55 High-Output Digital Plasma Cutter

• 1 x Professional Series Plasma Cutting Torch

• 1 x Heavy-Duty Earth Clamp and Cable

• 1 x Air Hose with Industrial Mounting Hardware

• 1 x Pre-installed Internal Air Regulator and Filter Assembly

• 1 x Starter Consumable Set (Electrodes and Nozzles)
